Pwmp Piston Hydrolig Rexroth
Pwmp piston hydrolig Rexroth gyda dadleoliadau amrywiol 31/32 cyfres A10V A10vo A10vso 18 28 45 71 100 140
Mae holl gynhyrchion HYLEMAN yn gwbl gyfatebol ac yn gyfnewidiol â'r gwreiddiol.
Nodweddion
1. Pwmp amrywiol gyda grŵp cylchdro piston echelinol mewn dyluniad plât swash ar gyfer gyriannau hydrostatig mewn cylched agored.
2. Mae'r llif yn gymesur â'r cyflymder gyrru a'r dadleoli.
3. Gellir amrywio'r llif yn anfeidrol trwy addasu ongl y plât swash.
4. 2 porthladd draen
5. Perfformiad sugno rhagorol
6. Lefel sŵn isel
7. bywyd gwasanaeth hir
8. Cymhareb pŵer/pwysau ffafriol
9. Amrediad rheolwr amlbwrpas
11. amser rheoli byr
12. Mae'r gyriant trwodd yn addas ar gyfer ychwanegu pympiau gêr a phympiau piston echelinol hyd at yr un maint, hy, 100% trwy yrru.
13. Yn addas ar gyfer gweithredu gydag olew mwynol a hylifau hydrolig HF.
Lluniau manwl
Disgrifiad Model
A10VSO 30 31 52 53 cyfres A10VO18, A10VO28, A10VO45, A10VO71, A10VO100, A10VO140 Rexroth pwmp piston hydrolig
| Math o god | |||||||||||||||||||||||||
| Math o god | |||||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||||
| Fersiwn 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 1 | Fersiwn safonol (heb god) | ||||||||||||||||||||||||
| Fersiwn cyflym (mae dimensiynau allanol yr un fath â'r fersiwn safonol) | - | - | - | H | |||||||||||||||||||||
| Uned piston echelinol | |||||||||||||||||||||||||
| 2 | Dyluniad plât swash, amrywiol, pwysau enwol 280 bar, pwysau uchaf 350 bar | - | - | - | - | - | - | A10VS | |||||||||||||||||
| - | A10V | ||||||||||||||||||||||||
| Modd gweithredu | |||||||||||||||||||||||||
| 3 | Pwmp, cylched agored | O | |||||||||||||||||||||||
| Maint (NG) | |||||||||||||||||||||||||
| 4 | Dadleoliad geometrig, gweler y tabl gwerthoedd ar dudalennau 6 a 7 | 18 | 28 | 45 | 71 | 88 | 100 | 140 | |||||||||||||||||
| Dyfais rheoli | |||||||||||||||||||||||||
| 5 | Rheolaeth dau bwynt, a weithredir yn uniongyrchol | DG | |||||||||||||||||||||||
| Rheolydd pwysau hydrolig | DR | ||||||||||||||||||||||||
| gyda rheolydd llif hydrolig | XT agored | DFR | |||||||||||||||||||||||
| XT wedi'i blygio â swyddogaeth fflysio | DFR1 | ||||||||||||||||||||||||
| XT wedi'i blygio heb swyddogaeth fflysio | DRSC | ||||||||||||||||||||||||
| gyda llif a rheolaeth pwysau gwahaniaethol, trydanol amrywiol | EF1) | ||||||||||||||||||||||||
| gyda thoriad pwysau | rheoli o bell hydrolig | DRG | |||||||||||||||||||||||
| rheolaeth negyddol trydanol | U = 12 V | ED71 | |||||||||||||||||||||||
| U = 24 V | ED72 | ||||||||||||||||||||||||
| rheolaeth bositif trydanol | U = 12 V | ER71 | |||||||||||||||||||||||
| U = 24 V | ER72 | ||||||||||||||||||||||||
| Rheoli pŵer llif pwysau | - | DFLR | |||||||||||||||||||||||
| Cyfres | |||||||||||||||||||||||||
| 6 | Cyfres 3, mynegai 1 | 31 | |||||||||||||||||||||||
| Cyfeiriad cylchdroi | |||||||||||||||||||||||||
| 7 | Wedi'i weld ar siafft yrru | clocwedd | R | ||||||||||||||||||||||
| gwrthglocwedd | L | ||||||||||||||||||||||||
| Deunydd selio | |||||||||||||||||||||||||
| 8 | FKM (fflworoelastomer) | V | |||||||||||||||||||||||
| Siafft gyriant 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 9 | Siafft hollt ANSI B92.1a | siafft safonol | S | ||||||||||||||||||||||
| yn debyg i siafft "S" fodd bynnag ar gyfer trorym mewnbwn uwch | - | - | R | ||||||||||||||||||||||
| diamedr llai, addasrwydd cyfyngedig ar gyfer gyriant trwodd (gweler y tabl gwerthoedd, tudalen 9) | ○ | U | |||||||||||||||||||||||
| yr un peth â "U", trorym uwch; addasrwydd cyfyngedig ar gyfer gyriant trwodd (gweler y tabl gwerthoedd, tudalen 9) | - | W | |||||||||||||||||||||||
| Mowntio fflans | |||||||||||||||||||||||||
| 10 | ISO 3019-1 (SAE) | 2-twll | C | ||||||||||||||||||||||
| 4-twll | - | - | - | - | - | - | D | ||||||||||||||||||
| 1) Gweler taflen ddata 92709 | |||||||||||||||||||||||||
| Math o god | |||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||
| Porth gweithio 18 28 45 71 88 100 140 | |||||||||||||||||||||||
| 11 | Porthladdoedd fflans SAE yn ôl J518 | Edefyn cau | nid ar gyfer gyrru trwodd | - | - | - | 11 | ||||||||||||||||
| Porthladdoedd gweithio | metrig; cefn | - | - | - | - | - | 41 | ||||||||||||||||
| metrig | Edefyn cau | ar gyfer trwy dreif | - | - | 12 | ||||||||||||||||||
| metrig; gwaelod ochrol uchaf | - | - | - | - | - | 42 | |||||||||||||||||
| Porthladdoedd fflans SAE yn ôl J518 | Edefyn cau | nid ar gyfer gyrru trwodd | - | - | - | 61 | |||||||||||||||||
| Porthladdoedd gweithio | UNF; cefn | - | - | - | - | - | 91 | ||||||||||||||||
| UNF | Edefyn cau | ar gyfer trwy dreif | - | - | 62 | ||||||||||||||||||
| UNF; gwaelod ochrol uchaf | - | - | - | - | - | 92 | |||||||||||||||||
| Trwy yriant (ar gyfer opsiynau mowntio, gweler tudalen 53) | |||||||||||||||||||||||
| 12 | Hyb fflans ISO 3019-1 ar gyfer siafft splined2) | 18 28 45 71 88 100 140 | |||||||||||||||||||||
| Diamedr Diamedr | |||||||||||||||||||||||
| heb trwy yrru | N00 | ||||||||||||||||||||||
| 82-2 (A) | 5/8 yn 9T 16/32DP | K01 | |||||||||||||||||||||
| 3/4 yn 11T 16/32DP | K52 | ||||||||||||||||||||||
| 101-2 (B) | 7/8 yn 13T 16/32DP | - | K68 | ||||||||||||||||||||
| 1 mewn 15T 16/32DP | - | - | K04 | ||||||||||||||||||||
| 127-2 (C) | 1 1/4 yn 14T 12/24DP | - | - | - | K07 | ||||||||||||||||||
| 1 1/2 yn 17T 12/24DP | - | - | - | - | - | K24 | |||||||||||||||||
| 152-4 (D) 1 3/4 yn 13T 8/16DP | - | - | - | - | - | - | K174) | ||||||||||||||||
| Cysylltwyr ar gyfer solenoidau3) | |||||||||||||||||||||||
| 13 | Heb gysylltydd (heb solenoid, gyda rheolaeth hydrolig yn unig, heb god) | ||||||||||||||||||||||
| DEUTSCH - cysylltydd wedi'i fowldio, 2-pin, heb ddeuod atalydd | P | ||||||||||||||||||||||
| = Ar gael ○=Ar gais -=Ddim ar gael | |||||||||||||||||||||||
| Hysbysiad | |||||||||||||||||||||||
| Sylwch ar y nodiadau cynllunio prosiect ar dudalen 59. | |||||||||||||||||||||||
| Yn ogystal â'r cod math, nodwch y data technegol perthnasol wrth osod eich archeb. | |||||||||||||||||||||||
| A10VSO 18 cyfres | |
| A10VSO18DR/31R-PPA12N00 | A10VSO18DFLR/31R-PPA12N00 |
| A10VSO18DR/31R-PPA12K01 | A10VSO18DG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00} | A10VSO18DRG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00} | A10VSO18DFE1/31R-PPA12N00} |
| A10VSO18DFR1/31R-PPA12K01 | A10VSO18FHD/31R-PPA12N00} |
| A10VSO18DFR/31R-PPA12N00 | A10VSO18ED/31R-PPA12N00 |
| A10VSO 28 cyfres | |
| A10VSO28DR/31R-PPA12N00 | A10VSO28DFLR/31R-PPA12N00 |
| A10VSO28DR/31R-PPA12K01 | A10VSO28DG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00} | A10VSO28DRG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00} | A10VSO28DFE1/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12K01 | A10VSO28FHD/31R-PPA12N00 |
| A10VSO28DFR/31R-PPA12N00 | A10VSO28ED/31R-PPA12N00 |
| A10VSO 45 gyfres | |
| A10VSO45DR/31R-PPA12N00 | A10VSO45DFR/31R-PPA12K26 |
| A10VSO45DR/31R-PPA12K01 | A10VSO45DFLR/31R-PPA12N00} |
| A10VSO45DFR1/31R-PPA12N00} | A10VSO45DG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12N00} | A10VSO45DRG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12K02 | A10VSO45DFE1/31R-PPA12N00} |
| A10VSO45DFR/31R-PPA12N00 | A10VSO45FHD/31R-PPA12N00 |
| A10VSO45DFR/31R-PPA12K01 | A10VSO45ED/31R-PPA12N00 |
| A10VSO 71 gyfres | |
| A10VSO71DR/31R-PPA12N00 | A10VSO71DFR/31R-PPA12K27 |
| A10VSO71DR/31R-PPA12K01 | A10VSO71DFLR/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00} | A10VSO71DG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00} | A10VSO71DRG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12K02 | A10VSO71DFE1/31R-PPA12N00 |
| A10VSO71DFR/31R-PPA12N00 | A10VSO71FHD/31R-PPA12N00 |
| A10VSO71ED/31R-PPA12N00 | |
Cyfres A10VSO 100:, A10VSO100DR/31R-PPA12N00, A10VSO100DR/31R-PPA12K01, A10VSO100DFR1/31R-PPA12N 00, A10VSO100DFR1/31R-PPA12N00 ,, A10VSO100DFR1/31R-PPA12K01 A10VSO100DFR/31R-PPA12N00,, A10VSO100DFLR/31R-PPA12N00, A10VSO100DG/31R-PPA12N00,, A10VSO100DRG/31R-PPA12N{{330} }, A10VSO100DFE1/31R-PPA12N00,, A10VSO100DFE1/31R-PPA12K02, A10VSO100FHD/31R-PPA12N{{4024} R6 A10VO100DFR1/31R-VSC62N00, R902411500 A10VSO45DFLR/31R-VPA12N00 145N R902424086 A10VO71DFR1/3086{{93}N R902424086 A10VO71DFR1/301R00 145 R902429793 A10VSO140DFLR/31R-VPB12N00 265N R902431762 A10VSO28DFLR/31R-VPA12N{115}}N, R902443895 A10VSO45DFLR/N2{2} R902456902 A10VO71DFR1/31R-VSC62K68, R902459592 A10VSO140DFR1/31R-VPB12K68 R902460463 A10VSO100DFLR/31N-VN} R902460861 A10VO45DFR1/31L-VSC62K68 R902460920 A10VSO28DFLR/31R-VPA12N00 100N, R902460921 A10VSO28DFLR/31R-VPA12N00 100N, R902460921 A10VSO28DFLR/31R-VPA12N{160} A10VSO45DFLR/31R-VPA12N00 100N, R902460923 A10VSO71DFLR/31R-VPA12N{181}}N R902460924 A10VSO71DFLR/31R-VPA12N{0,924A10VSO71DFLR/31R-VPA12N{181}N A10VSO100DFLR/31R-VPA12N00 120N R902460926 A10VSO100DFLR/31R-VPA12N00 200N, R902460927 A10VSO100DFLR/31R-VPA12N00 245N R902460928 A10VSO100DFLR/31R-VPA12N00 300N, R902460929 A10VSO1140N{216}A10VSO140N{216}N, R902460929 A10VSO1140ND{2 R902460930 A10VSO140DFLR/31R-VPB12N00 245N, R902460962 A10VO71DFR1/31L-VSC62K68 R902461113 A10VO28DFR1/31L-VSC6914 A10VO28DFR1/31L-VSC62N00 R902461115 A10VO45DFR1/31R-VSC62K68, R902461116 A10VO71DFR1/31R-VSC62K01 R9024611 A10VO71DFR1/31L-VSC62N00, R902461228 A10VSO45DFR1/31R-VPA12K68 R902461229 A10VSO71DFR1/31R-VPA12K68, R93026 A10VSO100DFR1/31R-VPA12K68 R910903160 A10VSO28DFR/31R-PPA12N00, R910903163 A10VSO28DR/31R-PPA12N{95}R{0} A10VO100DFR/31R-PSC62N00, R910907323 A10VO100DFR/31L-PSC62N{634}} R910907402 A10VO28DFR/32NR-{C4} R910907403 A10VSO45DR/31R-PPA12N00 R910907404 A10VO45DFR/31R-PSC62K01, R910907918 A10VO45DFR1/31R-PSC919007 A10VSO28DR/31R-PPA12K01, R910908655 A10VO28DFR/31R-PSC62K01 R910908725 A10VSO45DFR1/31R-PPA12N00, R91090928 A10VO45DFR1/31L-PSC62N00 R910909613 A10VSO45DFR/31R-PPA12K01, R910909949 A10VO45DFR/31L-PSC62K01 R910910181 A10VO45DFR1/31R-PSC62N00, R910910590 A10VSO28DFR1/31R-PPA12N00 R910911010 A10VSO45DFR/31R-PPA12K291, R791 A10VO28DFR1/31R-PSC61N00 R910912007 A10VSO100DR/31R-PPA12N{706}}, R910915421 A10VO28DR/30901RPSC612 A10VO45DFR1/31L-PSC62K01, R910916931 A10VO45DFR1/31R-PSC62K01 R910920557 A10VO45DFR1/31R-PSC62K02, R910921546 A10VSO140DFR1/31R-PPB12N00 R910922744 A10VSO100DFR1/31R-PPA12N{727}}, R910922947 A10VO28DFR1/329L-RC2 A10VSO140DR/31R-PPB12N00, R910923181 A10VO28DFR1/31R-PSC62K01 R910926318 A10VSO28DFR1/31R-PPA12K01, R96092 A10VSO45DFR1/31R-PPA12K02 R910927083 A10VSO100DFR1/31R-PPA12K02, R910927126 A10VSO140DFR1/31R-PPB12K03 R952 A10VSO140DRG/31R-PPB12N00, R910934823 A10VSO100DFLR/31R-PPA12N00 R910935974 A10VSO140DFLR/31N1R-,756} DFLR/31R-PPA12N A10VSO45DFLR/31R-PPA12N00 R910936059 A10VSO28DFLR/31R-PPA12N00, R910936062 A10VSO28DFLR/31R-PPA12N{693} A10VSO140DFLR/31R-PPB12N{{800}}, R910936130 A10VSO28DFLR/31R-PPA12N00 R910936207 A10VSO100DPPLR/31NR} R910936473 A10VSO100DFLR/31R-PPA12N00 R910936738 A10VSO100DFLR/31R-PPA12N00, R910936739 A10VSO45DFLR/31R-PPA12N00 R910936790 A10VSO100DFLR/31R-PPA12N00, R910936910 A10VSO45DFLR/31R-PPA12N{610}R910936910 A10VSO45DFLR/31R-PPA12N A10VSO45DFLR/31R-PPA12N00, R910938804 A10VSO18DFR1/31R-PUC62N{926}} R910938977 A10VSO140DFLR/31R-PPB12N}9{03} A10VSO28DFLR/31R-PPA12N00 R910939120 A10VO71DFR/31R-PSC62N00. R910939183 A10VSO45DFR/31R-PPA12N00 R910939192 A10VSO140DFR/31R-PPB12N{963}}, R910939643 A10VSO1{{PP9/A1}R{970}R{970}R R910940045 A10VO100DFR1/31L-PSC62N00, R910940520 A10VSO18DFR/31R-PPA12N{{1004}} R98294 A10VSO45DFLR/31R-PPA12N00, R910940787 A10VO28DFR/31L-PSC62N{1035}} R910940936 A10VSO28DFLR/31R-PPA12N}{104} A10VSO140DFLR/31R-PPB12N00 R910941657 A10VO71DFR1/31R-PSC62N00, R910942503 A10VSO18DR/31R-PPA121N{650} R910941657 A10VSO71DFR/31R-PPA12N00, R910942654 A10VSO71DFLR/31R-PPA12N{1075}} R910942696 A10VO28DFR1/31R-PSC6813}{1090} A10VO45DFR1/31R-PSC61N00 R910943468 A10VSO100DFLR/31R-PPA12N00, R910943655 A10VO45DFR/31R-PSC11{095}}DFLR/31R-PPA12N A10VSO140DFLR/31R-PPB12N00, R910944032 A10VSO100DFLR/31R-PPA12N00 R910944067 A10VSO71DFLR/32N-{PPA1}, R910944195 A10VO71DFR1/31L-PSC62N00 R910944440 A10VSO71DFR1/31R-PPA12N{1156}}, R910944502 A10VSO71DFA12N{1156}, A10VSO71DFR1-{1} R910944730 A10VSO71DFLR/31R-PPA12N00, R910945133 A10VSO71DR/31R-PPA12N00 R910945178 A10VSO18DFR1/19} R910945133 R910945653 A10VO71DFR1/31R-PSC61N00 R910946188 A10VO71DFR/31L-PSC62N{1223}}, R910946661 A10VO71DFRPS1/31K4 A10VSO18DFR/31L-PSC62N00, R910947870 A10VO71DFR1/31L-PSC62K02 R910947872 A10VSO71DFR1/31R-PPA12K02 .R6549 A10VSO71DFLR/31R-PPA12N00 R910948790 A10VSO71DFLR/31R-PPA12N00, R910961216 A10VSO71DFLR/31R-PPA1473{1240}{1241}{1241}{1241} A10VO45DFR/52R-PSC64N00 ,R910974886 A10VO60DFR1/52R-PSD61N00 R910988126 A10VSO10DR/52R-PKC64N{8170} A10VSO10DFR1/52R-PKC64N00 R910990406 A10VSO10DR/52R-PPA14N00, R910990987 A10VSO10DFR1/52R-PPA14N{1} A10VSO18DFR1/31R-PPB12N{{1300}}, A10VS018DFR1/31R-PPB12N{1312}}, A10VS018DR/31R-PPA12N00, A10VSO18DR/31R-PPA12N00, A10VSO18DFR1/31R-PPA12N00, A10VSO18DFR1/31R-PPB12NOO A10VS018DFR1/31R-PPB12NOO A10VSO18DR/31R-PPA12N00, A10VSO28DR/31R-PPA12N00 A10VS028DR/31R-PPA12N00, A10VO28DR/31R-PSC}{1346}} A10VSO28DRF1/31R-PSA12N00 A10VSO28DFR1/31R-PPA12N00, A10VSO28DFR1/31R-PPA12N00, A10VS028DFR1/31N00-PPA A10VSO28DFR/31R-PSA12N00, A10VO28DFR1/31L-PSC62N00, A10VO28DFR1/31R-PSC62N00 A10VS045DR/31R-PPA12N00, A10VSO45DR/21R A10VS045DFR1/31R-PPA12N00 A10VSO45DFR1/31R-PPA12N00, A10VSO45DFR1/31R-PPA12N00, A10VO45DFR1/31R-PSC62K02 AFRPP1B12N00,A10VSO45DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPA12N00, A10VS071DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPA12KB5, A10VSO71DFR/31R-PSC62K07, A1PPA102K07, A1PPA1002 A10VS071DFR1/31R-PPA12N00, A1OVSO71DFR1/31R-PPA12N00, A1OVS071DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPA12N00, A191B,A10V/SO A10VSO71DFR1/31R-PPB12NOO EA10VSO71DR/31R-PPA12N00, A10VSO71DR/31R-PPA12N00, A10VSO100DR/31R-PPA12N00 A10VS0100DR/210A10 A10VSO100DR/31R-VPA12N00, A10VS0100DR/31R-VPA12N00 A10VSO100DFR1/31R-PPA12N00, A10VS0100DFR1/31R-PPA12N00, APPAR-12N00, APPR12N00, APPR12N00 A10VSO100DFR1/31R-VPB12N00, A10VS0100DFR1/31R-VPB12N00, A10VSO100DFR1/31R-PPB12N00 A10V0100DR/31R-PSC11N00, A10P12N00,A10VTA A10VSO140D/31R-PPB12N00 A10VSO140DR/31R-PPB12N00, A10VS0140DR/31R-PPB12N00, E-A10VSO140DFR1/31R-PPA12N00 A10VSO1B,A10VS0140DR/31R-PPB12N00 A10VSO140DFR1/31R-PPB12N00, A10VS0140DFLR/31R-PPB12N00 A10VSO140DR/31R-PPB12N00, A10VS0140DR/31R-PPB12NOO, A10VSOR100 A10VSO140DR/31R-VPB22U99, A10VSO140DFR1/31R-PPB12N00

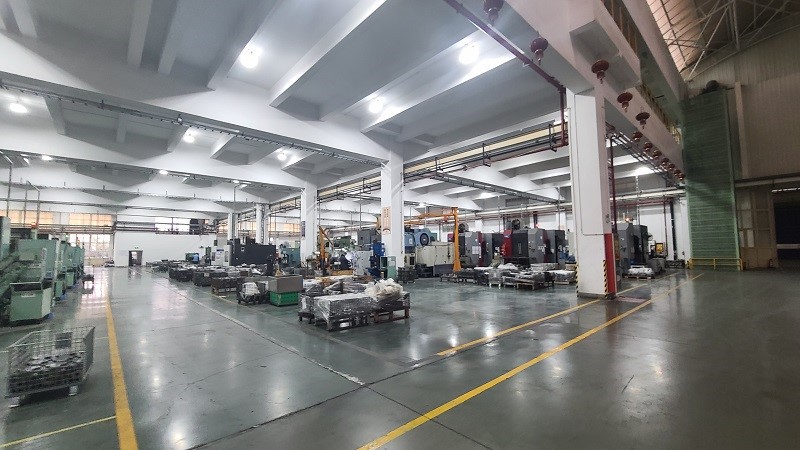

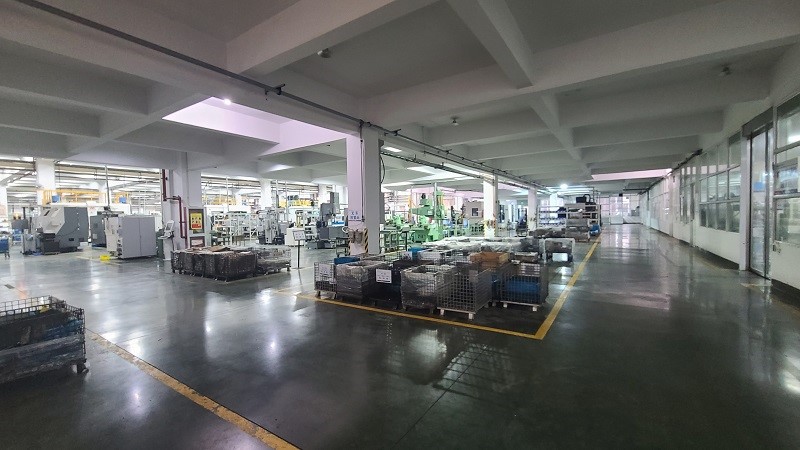

Proffil cwmni
Lluniau pecyn

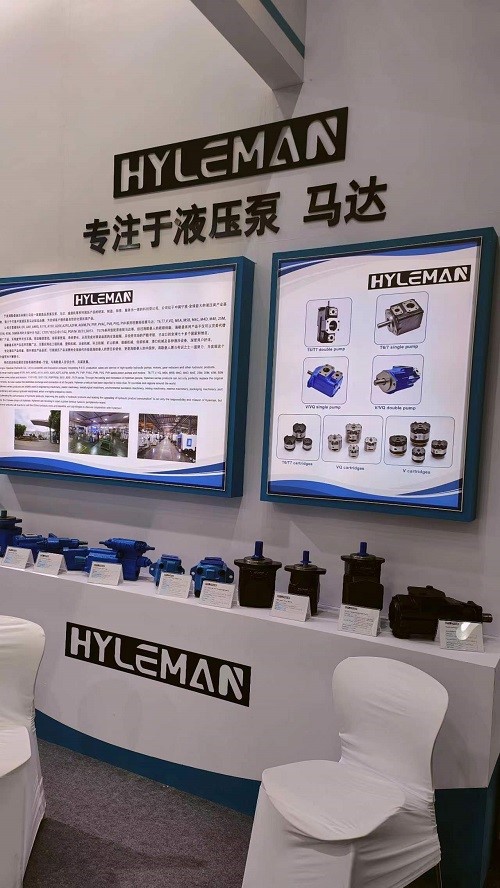

Arddangosfeydd
Ein manteision
1. Ansawdd Uchaf
Yn dibynnu ar 20 mlynedd o brofiad mewn dylunio pympiau hydrolig, ymchwil, datblygu a gweithgynhyrchu, mae gennym ansawdd uchaf o'i gymharu â gweithgynhyrchwyr domestig a thramor, mae ein holl gynnyrch gydag amser gwarant blwyddyn.
2. System Rheoli Ansawdd llym
Mae gennym y system rheoli ansawdd mwyaf llym, mae ein holl gynnyrch yn cael eu profi 100% cyn eu cludo ac mae gan bob un ohonynt un cod olrhain er mwyn sicrhau eu bod o ansawdd da i'n cwsmeriaid.
3. Offer peiriannau uwch
Mae'r holl beiriannau sydd gennym yn beiriannau CNC newydd a fewnforiwyd gennym o'r Almaen a Japan er mwyn cyrraedd mwy o alw am gywirdeb y cynhyrchion.
